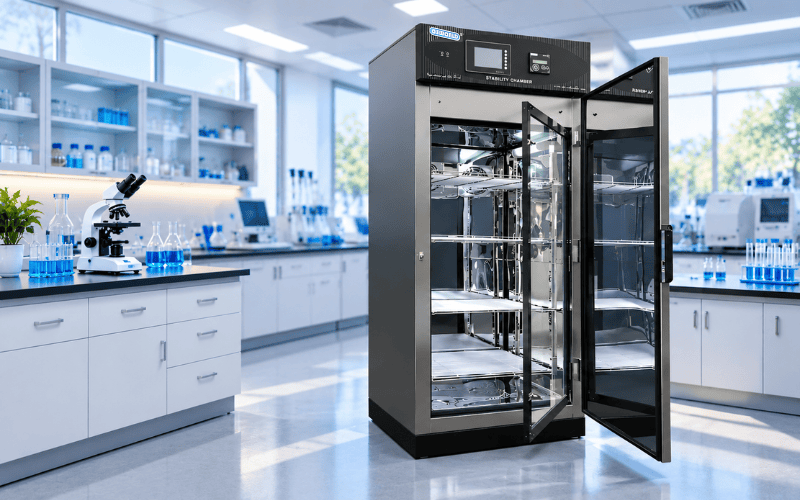

A stability chamber is designed to maintain controlled environmental conditions for testing and storage applications. But specifying a temperature and humidity set point on the controller does not by itself demonstrate that every usable area inside the chamber experiences the same conditions.
This is where temperature and humidity mapping becomes important.
Mapping evaluates environmental variation at multiple locations inside a chamber. Osworld describes temperature and humidity mapping as a process in which calibrated sensors are positioned at multiple points to record variations during operation and identify hot spots, cold spots and humidity fluctuations.
For laboratories using stability chambers, walk-in chambers and cold rooms, mapping can therefore provide useful evidence about environmental uniformity across the usable space.
What Is Temperature and Humidity Mapping?
Temperature and humidity mapping is the process of measuring environmental conditions at multiple predefined locations within a controlled chamber or storage area.
Instead of relying on a single sensor or controller reading, multiple calibrated sensors are used to understand how conditions vary throughout the chamber.
The collected data can help determine:
- Temperature distribution
- Humidity distribution
- Areas with higher or lower temperature
- Areas with humidity variation
- Whether the usable space remains within defined conditions
- Potential locations that require closer monitoring
Osworld specifically applies temperature and humidity mapping to environmental equipment including stability chambers, walk-in chambers and cold rooms.
Why Is Mapping Important for Stability Chambers?
A chamber may display the required set point on its controller while different locations inside the chamber experience some degree of variation.
For stability studies, controlled environmental conditions are important because samples are intentionally exposed to defined conditions over a specified period.
WHO guidance on stability testing describes stability studies as part of the quality evaluation of active pharmaceutical ingredients and finished pharmaceutical products and links stability data to defined storage conditions.
This makes environmental control an important part of the overall stability-testing setup.
Mapping can help laboratories understand the actual environmental distribution within their equipment rather than relying only on the programmed set point.
How Does Stability Chamber Mapping Work?
The exact mapping protocol should be established according to the equipment, chamber dimensions, intended use, applicable procedures and laboratory quality system.
A typical mapping exercise involves several key stages.
1. Define the Mapping Objective
Before placing sensors, the laboratory should establish why mapping is being performed.
The objective could relate to:
Initial equipment qualification
Periodic verification
Investigation of environmental variation
Equipment modification
Relocation
Maintenance-related changes
Requalification
The objective determines the appropriate mapping approach and documentation.
2. Select and Verify Measuring Instruments
Mapping relies on measurement data, so the instruments used should be suitable for the required parameters and measurement range.
Osworld states that its mapping activities use calibrated sensors and certified instruments.
Instrument identification and calibration status should be documented as part of the mapping record.
3. Place Sensors at Multiple Locations
Sensors are positioned across the usable chamber area to capture environmental conditions at different points.
Placement should take into account:
Chamber dimensions
Shelf arrangement
Airflow
Sample locations
Usable storage area
Potential areas of variation
The objective is to obtain meaningful information about the environmental conditions throughout the area being evaluated.
4. Record Environmental Conditions
Once the sensors are positioned, measurements are recorded during the defined mapping period.
The collected data can then be reviewed to determine temperature and humidity behaviour across the chamber.
5. Identify Variation
The recorded results are evaluated to identify areas that behave differently from the rest of the chamber.
These may include:
Hot spots
Cold spots
Humidity variation
Areas with greater fluctuation
Locations requiring operational attention
Osworld specifically identifies hot spots, cold spots and humidity fluctuations as conditions that mapping can reveal.
What Does Mapping Identify?
Temperature Uniformity
Temperature mapping provides information about how temperature is distributed throughout the chamber.
A controller may indicate one temperature, but mapping allows the laboratory to examine temperature conditions at multiple points.
This information is particularly useful when determining where samples can be positioned within the usable space.
Hot and Cold Spots
A hot spot is an area that records relatively higher temperature compared with other mapped locations, while a cold spot records relatively lower temperature.
Identifying these locations helps laboratories understand environmental distribution and make informed decisions about chamber usage.
Humidity Variation
For chambers where humidity is controlled, mapping can also show how humidity varies across different locations.
This is important because environmental stability may depend on both temperature and humidity rather than temperature alone.
Mapping vs Calibration vs Validation
These terms are related but should not be treated as interchangeable.
Calibration
Calibration establishes the relationship between a measurement instrument and a reference standard.
Osworld states that its calibration services use certified master instruments traceable to national and international standards and cover parameters including temperature, humidity and pressure.
Mapping
Mapping evaluates environmental conditions at multiple locations within a chamber or controlled area.
The purpose is to understand distribution and uniformity across the usable space.
Validation
Validation provides documented evidence that equipment performs as intended under defined conditions.
Osworld’s validation service includes Installation Qualification (IQ), Operational Qualification (OQ) and Performance Qualification (PQ).
Therefore, calibration, mapping and validation can form complementary parts of an equipment quality and qualification program.
When Should a Stability Chamber Be Mapped?
The appropriate frequency depends on the laboratory’s quality system, equipment use, applicable requirements and risk assessment.
Mapping may be considered during situations such as:
Initial Qualification
Newly installed equipment may require qualification before routine use.
After Major Changes
Equipment modifications, relocation or significant maintenance may affect environmental performance.
Periodic Verification
Laboratories may establish periodic mapping activities as part of their equipment monitoring program.
Investigation of Deviations
If monitoring indicates unexpected temperature or humidity behaviour, mapping may help investigate the distribution of conditions within the chamber.
The specific frequency and acceptance criteria should be established by the responsible quality and technical teams according to the applicable procedure.
Documentation and Reporting
Mapping is not only about collecting sensor readings.
A useful mapping record should provide enough information to understand how the study was conducted and what the results represent.
Depending on the laboratory’s procedures, documentation may include:
- Equipment identification
- Chamber identification
- Mapping date
- Instrument identification
- Calibration status
- Sensor locations
- Mapping conditions
- Recorded measurements
- Minimum and maximum values
- Identified variation
- Acceptance criteria
- Observations
- Conclusion
- Supporting records
Osworld states that its mapping activities include complete documentation for audits and inspections.
Temperature and Humidity Mapping in Pharmaceutical Applications
Pharmaceutical laboratories use controlled environmental equipment for stability studies and other quality-related activities.
WHO guidance states that quality control should evaluate the quality and stability of finished pharmaceutical products and, where necessary, starting and intermediate materials. It also describes ongoing stability programmes involving storage conditions and testing schedules.
For such environments, understanding the performance of the equipment can therefore be an important part of the broader quality system.
Osworld’s pharmaceutical industry page identifies stability chambers, autoclaves, BOD incubators, hot air ovens and vacuum ovens among equipment used across pharmaceutical laboratories, pilot plants and production environments.
Mapping for Walk-In Stability Chambers and Cold Rooms
Mapping is not limited to compact laboratory chambers.
Larger controlled environments such as walk-in stability chambers and cold rooms can have larger usable areas, making spatial temperature and humidity distribution particularly relevant.
Osworld specifically states that its mapping services cover Stability Chambers, Walk-In Chambers and Cold Rooms.
For larger installations, sensor placement should account for the full usable area and the way air moves through the environment.
What Should Laboratories Consider Before a Mapping Study?
Before arranging mapping, laboratory and QA teams should define:
- The equipment being mapped
- The environmental parameters to be measured
- The usable area
- The intended application
- The required measurement range
- The instrument calibration status
- The mapping duration
- The acceptance criteria
- The reporting requirements
- Whether re-mapping is required after changes
Having these points defined before the study helps ensure that the mapping exercise addresses the actual operational requirement.
Frequently Asked Questions
What is temperature and humidity mapping?
It is the measurement of temperature and humidity at multiple locations within a controlled chamber or area to understand environmental distribution and variation.
Why is stability chamber mapping important?
It helps laboratories identify temperature and humidity variation across the usable chamber space and provides information about uniformity.
What are hot spots and cold spots?
Hot spots are locations that record relatively higher temperatures, while cold spots record relatively lower temperatures compared with other mapped locations.
Is mapping the same as calibration?
No. Calibration concerns the accuracy and traceability of measurement instruments, while mapping evaluates environmental distribution across multiple locations.
Is mapping the same as validation?
No. Mapping is one type of performance assessment. Validation is a broader documented process used to demonstrate that equipment performs as intended under defined conditions.
Does Osworld provide temperature and humidity mapping?
Yes. Osworld’s calibration and validation service specifically includes temperature and humidity mapping for Stability Chambers, Walk-In Chambers and Cold Rooms.
Conclusion
Temperature and humidity mapping provides laboratories with a clearer understanding of how environmental conditions are distributed throughout a stability chamber or controlled storage area.
Rather than relying solely on a controller reading, mapping uses multiple measurement points to identify variations and potential hot spots, cold spots or humidity differences.
For pharmaceutical, cosmetics, food and other regulated laboratory environments, mapping can support equipment qualification, monitoring and documented quality processes when performed according to the laboratory’s defined procedures.
Osworld provides stability chambers, walk-in environmental systems and calibration and validation services, including temperature and humidity mapping performed using calibrated instruments and documented procedures.
If you need temperature and humidity mapping for a stability chamber, walk-in chamber or cold room, contact Osworld to discuss the equipment, application and documentation requirements.
